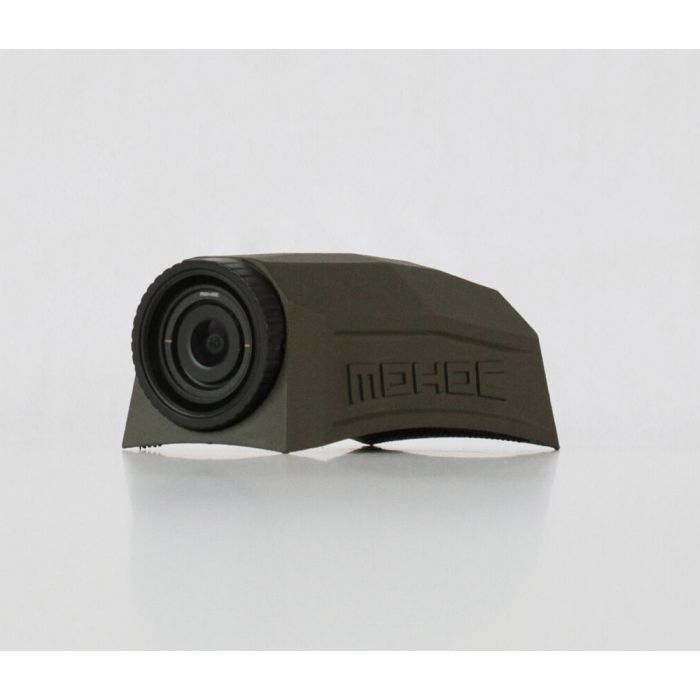

MOHOC® 2 USB-UCV Model - Tactical Military Helmet Camera

The MOHOC® 2 (USB-UVC model) is built for radios that accept USB-UVC video and power/data hubs such as Glenair STAR-PAN™.

MOHOC believes the world’s toughest warfighters deserve equipment worthy of their missions. Responding to the evolving needs of the Hyper-Enabled Operator and Integrated Tactical Network, the MOHOC® 2 Camera delivers real-time video streaming over handheld radios.

The camera is smaller, lighter, and simpler to operate than the original MOHOC®, but with the same revolutionary low-profile, helmet-contoured form factor and military-grade ruggedization. A radically improved sensor offers incredible low-light and infrared capability, combining the benefits of day and IR cameras into a single model. Designed as a customizable platform, MOHOC® 2 can be tailored to match many C5ISR requirements.

All MOHOC® 2 cameras are available for purchase in Black, Tan, and MIL Green.

MOHOC® 2 cameras are built to order, so estimated lead time is 30 days after receipt of order.

Features:

• 20x Improved Low-Light Sensitivity
• Plug-and-Play Radio Integration- connects directly to power/data hubs such as Glenair STAR-PAN™
• MIL Spec cables and ports – available as a fixed standard USB cable tail that ends in a Male USB Type A or as a Glenair 807 6 Pin Male out the camera back

What's Included:

• (1) MOHOC® 2 USB-UVC Camera
• (2) Industrial Strength Black VELCRO® Brand Loop Strips
• (1) Camera bag

General Specifications:

• IMAGE SENSOR: 1/2.8” Color CMOS (back illuminated pixels for ultra-low light)
• MIN. ILLUMINATION: 0.006Lux @F2.0, 0.0002(DSS on) in visible light
• OPTICS/LENS: Aperture F2.0, 120º Field of View
• SCANNING SYSTEM: Progressive Scan
• ELECTRONIC SHUTTER: 50Hz : 1/25~25,600sec 60Hz : 1/30~1/30,000sec
• IMPACT RESISTANCE: 2m (6.5ft) drop test
• WATERPROOF RATING: IP64 standard connectors, IP68 (10m for 30min) connectors optional
• POWER REQUIREMENT: DC external power source
• CONNECTION: Cabled
• LOW LIGHT: Auto adjustment for optimal recording in low light environments
• ROTATING LENS: Manually rotate lens up to 190º to record horizontal video from any mounting position
• SECURE ATTACHMENT: CurvelockTM base designed to match helmet curvature, provides unprecedented low-profi le, secure attachment via Velcro® direct to helmet or helmet cover.
• IMAGE SETTINGS/CONTROL: Day & Night Mode(Auto/Color/B&W), Auto Gain Control, DSS, WDR, DNR, BLC, Auto Exposure, Image Effect(Gamma/Defog/Privacy/Motion Detection), Digital Image Stabilization (DIS)
• OPERATING TEMP.: 14ºF~131ºF (-10ºC~+55ºC)
• DIMENSIONS: 80mm (3.2in) long x 41mm (1.6in) wide x 32mm (1.2in) tall
• WEIGHT: 71 grams (2.5oz)

USB-UCV Model Specifications:

• OUTPUT: MJPEG: 1080/720p
• RESOLUTION: Max. 1080P (1920 x 1080)
• FPS: Max. 25/30fps (50/60Hz)
• POWER: USB 5V, Consumption: Max. 180mA@DC5V
• CONNECTION: Gleniar 807 or Standard USB cable
• EXPOSURE: Auto
• WHITE BALANCE: Auto
• GAIN CONTROL: Auto
• POWER USB: 5V, Consumption: Max. 180mA@DC5V
• SUPPORT: Windows, Linux, Mac, Android, etc.
