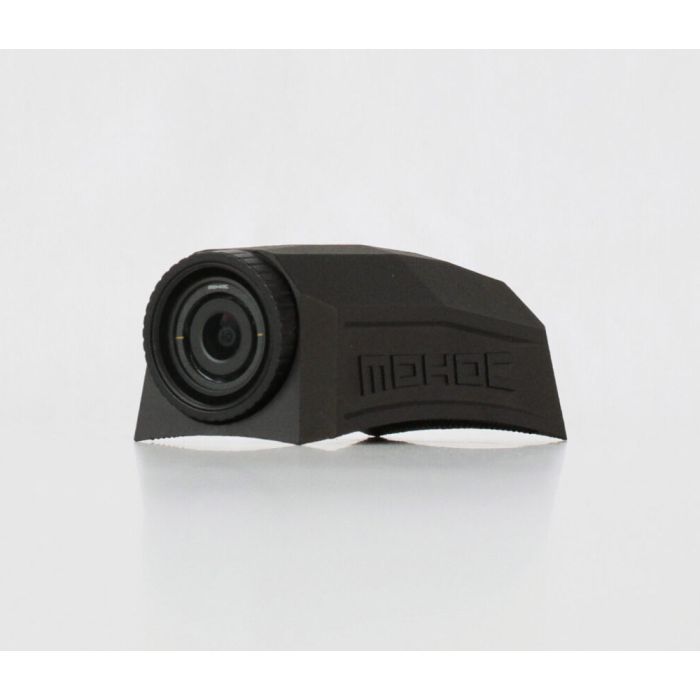

MOHOC® 2 SDI Video - Tactical Military Helmet Camera

MOHOC® 2 SDI outputs SDI video compatible with the Persistent Systems MPU5 MANET and DTC SOL8DSR-H2 radios.

MOHOC believes the world’s toughest warfighters deserve equipment worthy of their missions. Responding to the evolving needs of the Hyper-Enabled Operator and Integrated Tactical Network, the MOHOC® 2 Camera delivers real-time video streaming over handheld radios.

The camera is smaller, lighter, and simpler to operate than the original MOHOC®, but with the same revolutionary low-profile, helmet-contoured form factor and military-grade ruggedization. A radically improved sensor offers incredible low-light and infrared capability, combining the benefits of day and IR cameras into a single model. Designed as a customizable platform, MOHOC® 2 can be tailored to match many C5ISR requirements.

All MOHOC® 2 cameras are available for purchase in Black, Tan, and MIL Green.

MOHOC® 2 cameras are built to order, so estimated lead time is 30 days after receipt of order.

Features:

• 20x Improved Low-Light Sensitivity
• Plug-and-Play Radio Integration- SDI camera designed to connect directly to Persistent Systems MPU5 and DTC SOL8 radio via HD BNC video input
• MIL Spec cables and ports – Din1.0/2.3 to HD BNC for video output and Push Pull to Male USB to power off the radio or external USB power source

What's Included:

• (1) MOHOC® 2 SDI Camera
• (1) Din1.0/2.3 to HD BNC video cable to connect to radio
• (1) Power cable from MOHOC 2 to Male USB to power from radio or USB power source
• (2) Industrial Strength Black VELCRO® Brand Loop Strips
• (1) Camera bag

General Specifications:

• IMAGE SENSOR: 1/2.8” Color CMOS (back illuminated pixels for ultra-low light)
• MIN. ILLUMINATION: 0.006Lux @F2.0, 0.0002(DSS on) in visible light
• OPTICS/LENS: Aperture F2.0, 120º Field of View
• SCANNING SYSTEM: Progressive Scan
• ELECTRONIC SHUTTER: 50Hz : 1/25~25,600sec 60Hz : 1/30~1/30,000sec
• IMPACT RESISTANCE: 2m (6.5ft) drop test
• WATERPROOF RATING: IP64 standard connectors, IP68 (10m for 30min) connectors optional
• POWER REQUIREMENT: DC external power source
• CONNECTION: Cabled
• LOW LIGHT: Auto adjustment for optimal recording in low light environments
• ROTATING LENS: Manually rotate lens up to 190º to record horizontal video from any mounting position
• SECURE ATTACHMENT: CurvelockTM base designed to match helmet curvature, provides unprecedented low-profi le, secure attachment via Velcro® direct to helmet or helmet cover.
• IMAGE SETTINGS/CONTROL: Day & Night Mode(Auto/Color/B&W), Auto Gain Control, DSS, WDR, DNR, BLC, Auto Exposure, Image Effect(Gamma/Defog/Privacy/Motion Detection), Digital Image Stabilization (DIS)
• OPERATING TEMP.: 14ºF~131ºF (-10ºC~+55ºC)
• DIMENSIONS: 80mm (3.2in) long x 41mm (1.6in) wide x 32mm (1.2in) tall
• WEIGHT: 71 grams (2.5oz)

SDI Video Streaming Specifications:

• 3G-SDI STREAM: 1080p25/30/50/60, 720p25/30, 720p50/60, 1080i50/60
• ANALOG STREAM: CVBS
• ON SCREEN DISPLAY: Available via OSD Switch & Serial Port
• POWER CONSUMPTION: DC5~18V, Max.130mA@DC12V
• COMMUNICATION: Yes (RS485 ) // RX only
